Gravel Ti - Enthusiast
SRAM Rival XPLR AXS

  1. £3,699

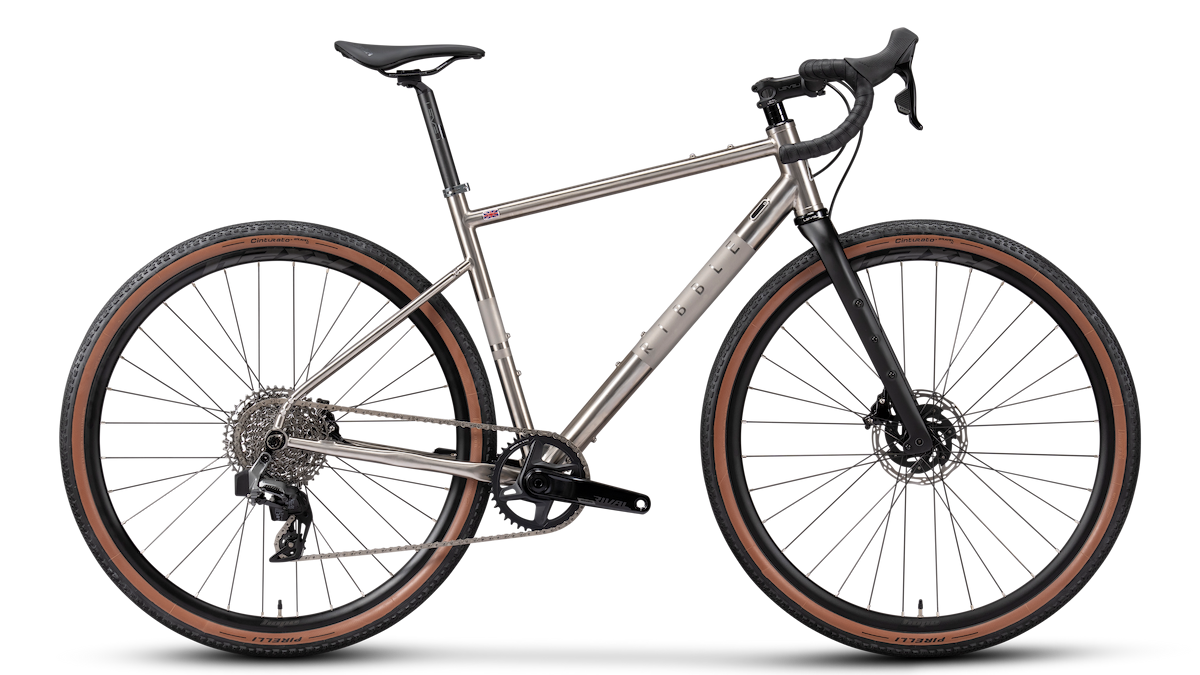

The Gravel Ti is a supremely capable gravel bike designed to conquer the most challenging terrain while delivering impeccable performance, timeless style and ultimate titanium ride quality. In Enthusiast specification, the Gravel Ti is paired with SRAM’s Rival XPLR AXS wireless electronic groupset, robust Hope RX24 alloy wheels, and burly 45mm Pirelli Cinturato Gravel tyres with Selle Italia Novus Boost saddle.
Product code: BGRAVTIRIAXXP2

...And Many Ways To Pay...

  • "a real charm to ride It handles beautifully in the rough and is nimble on the road..."
    Cyclist

Description

The Gravel Ti is a supremely capable gravel bike designed to conquer the most challenging terrain while delivering impeccable performance, timeless style and ultimate titanium ride quality. In Enthusiast specification, the Gravel Ti is paired with SRAM’s Rival XPLR AXS wireless electronic groupset, robust Hope RX24 alloy wheels, and burly 45 mm Pirelli Cinturato Gravel tyres with a Selle Italia Novus Boost saddle.

Groupset

Rival XPLR eTap AXS lets you equip your gravel bike with the most sought-after features and technologies. This 1x12-speed gear system combines a dedicated 1x specific rear derailleur with a massive 440% gear range to provide smooth gear progression as you fly up climbs and dive down descents when it's time to put the hammer down. AXS connectivity allows you to fully customise component behaviour, personalise controls, check battery status, and update firmware from one device. Rival XPLR is fully interchangeable with the entire AXS ecosystem and includes hydraulic disc brakes' powerful and predictable control.

Groupset

Wheelset

Hope has long been a staple for off-road bikers worldwide. Their new offering brings their legendary build quality and durability to the mixed surface scene, allowing ardent explorers to venture further off-track in search of adventure. Even more durable and resilient than the preceding 20Five wheelset and with the all-surface comfort of wider tyres, this wheelset is ready to roll whenever adventure calls—paired with a 45 mm Pirelli Cinturato gravel tyre, which offers the ability to adapt to the terrain without compromising rolling efficiency while delivering outstanding puncture protection and grip in wet or dry conditions.

Wheelset

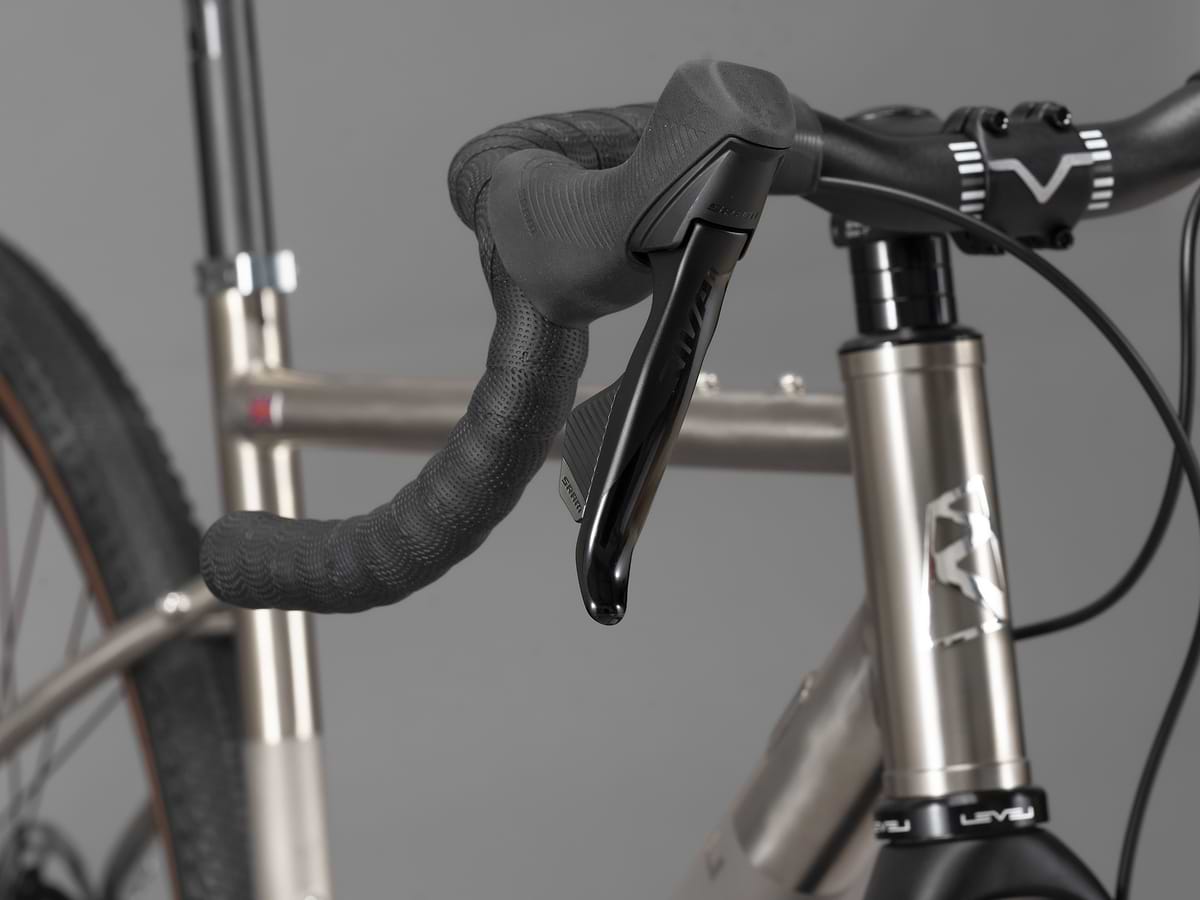

Handlebars

LEVEL Gravel Riser handlebars have been developed specifically for gravel riding; a 20mm rise offers multiple hand positions and more space on the bars when running a barbag. Flared drops provide a wider, more stable stance for improved handling and control when descending and navigating technical terrain. Wrapped in a comfortable LEVEL bar tape and neatly matched with a LEVEL alloy handlebar stem.

Handlebars

Saddle

A vibration absorbing LEVEL carbon seat post paired with a lightweight, supportive, and comfortable Selle Italia Novus Boost Evo saddle improves pedalling ergonomics, manoeuvrability, and performance.

Saddle

Size

To assist you in selecting the correct size, simply find your height on the graphic. It illustrates our recommendations so you can be confident that the size you order will be correct. If you find that your height is between sizes, we recommend you opt for the smaller size.

Size

Geometry

SizeXXSXSSMMDLGXL
Rider Height4'11" - 5'3" (150 - 160cm)5'3" - 5'6" (160 - 168cm)5'6" - 5'8" (168 - 173cm)5'8" - 5'10" (173 - 178cm)5'10" - 6'0" (178 - 183cm)6'0" - 6'3" (183 - 191cm)
Wheel Size650b / 700c650b / 700c650b / 700c650b / 700c650b / 700c650b / 700c
A - Seat Tube Length (mm)440mm460mm480mm500mm520mm540mm
B - Top Tube (mm)508mm522mm550mm570mm585mm602mm
C - Reach (mm)372mm381mm388mm397mm406mm412mm
D - Head Tube Length (mm)90mm110mm130mm150mm170mm190mm
E - Stack (mm)525mm546mm565mm584mm603mm625mm
F - Head Tube Angle70°70.5°71.5°71.5°72°72°
G - Wheelbase (mm)1020mm1016mm1037mm1052mm1068mm1075mm
H - Chainstay Length (RC)435mm435mm435mm435mm435mm435mm
I - Seat Tube Angle75.5°75.5°74°73.5°73.3°73°
Fork Rake/Offset (mm)50mm50mm50mm50mm50mm50mm
Bb Drop (mm)70mm70mm67mm65mm65mm65mm

Frequently Asked Questions

the Sport edition weighs 10.45 kg, Enthusiast 10.32 kg and Pro 9.9 kg.

The frame has a 3-year warranty against manufacturing defects. All other parts have the standard manufacturer's warranty.

Yes, all the cables are routed internally, this extends to the capability to fit an internally routed dropper post and Shimano Di2 electronic systems.

There is clearance for 650b x 47 mm or 700c x 45 mm tyres.

Yes, the frame has discreet fittings for a rear pannier rack, plus there’s carryall mounts situated on the front forks that allow the attachment of oversize cages to carry items such as ground mats, sleeping bags etc.

Yes, there are eyelets situated on the frame and forks for the fitting of full coverage mudguards.

Four in total. Two are situated on the seat tube and down tube, plus a further mount underneath the downtube and one on the top tube.

Yes, thanks to its fully internal cable routing, the frame is fully compatible with electronic gear systems.

We recommend a total rider, luggage and bike weight of 120 kg.

It will require a headset that is compatible with 1 1/8" to 1 1.5" tapered forks and a 44mm headtube with external headset cups like the LEVEL 44 headset that we fit as standard. The bearing dimensions are Upper: 41 x 30.2 x 6.5 mm 35° x 45°, Lower: 52 x 40 x 8mm 45° x 45°.

The Gravel Ti takes a traditional threaded BSA style of bottom bracket.

The seat post diameter is 27.2 mm, and the seat collar is 31.8 mm.

The frame is compatible with flat-mount disc brakes.

The frame requires M12 x 120mm x1.5 mm front and M12 x 172 mm x 1.75 mm rear thru-axles.

Due to the many different systems people use, we do not supply pedals with bikes. However, you can choose from a selection of the best-selling models when you configure your bike.
