Gravel Ti - Pro
SRAM Force XPLR AXS

  1. £4,699

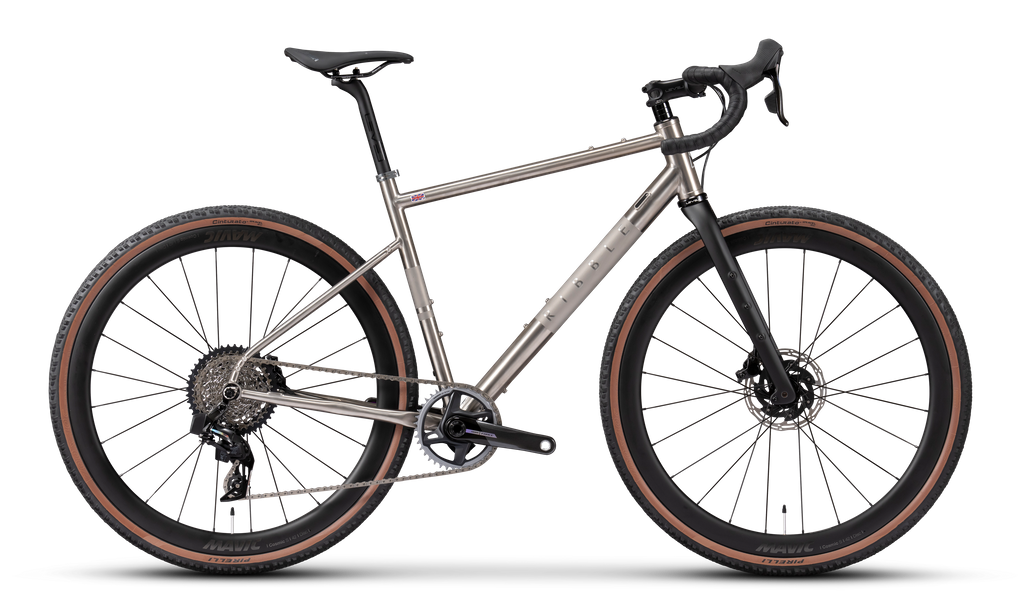

The Gravel Ti is a supremely capable gravel bike designed to conquer the most challenging terrain while delivering impeccable performance, timeless style and ultimate titanium ride quality. In Pro specification, the Gravel Ti is paired with SRAM’s Force XPLR AXS wireless electronic groupset, versatile Mavic Cosmic S 42 carbon wheels, and chunky 40 mm Pirelli Gravel RC tyres with a Selle Italia Novus Boost saddle rounding out this pro-level package.
Choose Your Bike
Product code: BGRAVTIFOAXXP

...And Many Ways To Pay...

  • "a real charm to ride It handles beautifully in the rough and is nimble on the road..."
    Cyclist
DescriptionGroupsetWheelsetHandlebarsSaddleSizeGeometryFrequently Asked Questions

Description

The Gravel Ti is a supremely capable gravel bike designed to conquer the most challenging terrain with the impeccable performance, timeless style and ultimate titanium ride quality. In Pro specification, the Gravel Ti is paired with SRAM’s Force XPLR AXS wireless electronic groupset, versatile Mavic Cosmic S 42 carbon wheels, and chunky 40 mm Pirelli Gravel RC tyres with a Selle Italia Novus Boost saddle rounding out this pro-level package.

Groupset

Force XPLR AXS continues to push the boundaries of what's possible with electronic shifting. It changes the equation for terrains with ever changing variables. Entirely cable free, it offers an ultra-wide gear range to go after any challenge and closer progression for a more fluid shifting experience. Smooth, accurate shifting, easy personalisation and the superior braking power and modulation of hydraulic disc brakes provide many hours of trouble-free riding pleasure.

Groupset

Wheelset

Mavic Cosmic S 42 carbon wheels are engineered for riders seeking the perfect balance between weight, aerodynamics, and speed. Their minimal drag and low inertia design allow you to accelerate and climb faster while holding higher speeds for longer - paired with a 40 mm Pirelli Cinturato Gravel RC tyre, designed to compete at some of the world’s most prestigious gravel races. Featuring a fast rolling running surface and improved lateral grip for cornering off-road, this tyre performs at the highest level.

Wheelset

Handlebars

LEVEL Gravel Riser handlebars have been developed specifically for gravel riding; a 20mm rise offers multiple hand positions and more space on the bars when running a barbag. Flared drops provide a wider, more stable stance for improved handling and control when descending and navigating technical terrain. Wrapped in a comfortable LEVEL bar tape and neatly matched with a LEVEL alloy handlebar stem.

Handlebars

Saddle

A superlight LEVEL all-carbon seat post paired with a lightweight, supportive, and comfortable Selle Italia Novus Boost Evo saddle improves pedalling ergonomics, manoeuvrability, and performance.

Saddle

Size

To assist you in selecting the correct size, simply find your height on the graphic. It illustrates our recommendations so you can be confident that the size you order will be correct. If you find that your height is between sizes, we recommend you opt for the smaller size.

Size

Geometry

SizeXXSXSSMMDLGXL
Rider Height4'11" - 5'3" (150 - 160cm)5'3" - 5'6" (160 - 168cm)5'6" - 5'8" (168 - 173cm)5'8" - 5'10" (173 - 178cm)5'10" - 6'0" (178 - 183cm)6'0" - 6'3" (183 - 191cm)
Wheel Size650b / 700c650b / 700c650b / 700c650b / 700c650b / 700c650b / 700c
A - Seat Tube Length (mm)440mm460mm480mm500mm520mm540mm
B - Top Tube (mm)508mm522mm550mm570mm585mm602mm
C - Reach (mm)372mm381mm388mm397mm406mm412mm
D - Head Tube Length (mm)90mm110mm130mm150mm170mm190mm
E - Stack (mm)525mm546mm565mm584mm603mm625mm
F - Head Tube Angle70°70.5°71.5°71.5°72°72°
G - Wheelbase (mm)1020mm1016mm1037mm1052mm1068mm1075mm
H - Chainstay Length (RC)435mm435mm435mm435mm435mm435mm
I - Seat Tube Angle75.5°75.5°74°73.5°73.3°73°
Fork Rake/Offset (mm)50mm50mm50mm50mm50mm50mm
Bb Drop (mm)70mm70mm67mm65mm65mm65mm

Frequently Asked Questions

Our recommended builds weigh 10.45 kg for the Sport, 10.32 kg for Enthusiast 9.9 kg for Pro (based on a medium frame).

The frame has a 3-year warranty against manufacturing defects. All other parts have the standard manufacturer's warranty.

Yes, all the cables are routed internally, this extends to the capability to fit an internally routed dropper post and Shimano Di2 electronic systems.

There is clearance for 650b x 47 mm or 700c x 45 mm tyres. If mudguards are fitted, this is reduced to 40 mm.

Yes, the frame has discreet fittings for a rear pannier rack, plus there’s carryall mounts situated on the front forks that allow the attachment of oversize cages to carry items such as ground mats, sleeping bags etc.

Yes, there are eyelets situated on the frame and forks for the fitting of full coverage mudguards.

Four in total. Two are situated on the seat tube and down tube, plus a further mount underneath the downtube and one on the top tube.

Yes, thanks to its fully internal cable routing, the frame is fully compatible with electronic gear systems.

We recommend a total rider, luggage and bike weight of 120 kg.

It will require a headset that is compatible with 1 1/8" to 1 1.5" tapered forks and a 44mm headtube with external headset cups like the LEVEL 44 headset that we fit as standard. The bearing dimensions are Upper: 41 x 30.2 x 6.5 mm 35° x 45°, Lower: 52 x 40 x 8mm 45° x 45°.

The Gravel Ti takes a traditional threaded BSA style of bottom bracket.

The seat post diameter is 27.2 mm, and the seat collar is 31.8 mm.

The frame is compatible with flat-mount disc brakes.

The frame requires M12 x 120 mm x 1.5 mm front and M12 x 172 mm x 1.5 mm rear thru-axles.

Due to the many different systems people use, we do not supply pedals with bikes. However, you can choose from a selection of our best-selling models when you configure your bike.
