Hybrid AL e - Fully Loaded Edition
SRAM NX 11 Speed

  1. £1,799
With its classic British styling, powerful hub motor and robust components, the Hybrid AL e is built for riders who want to elevate their daily commutes and recreational rides to a whole new level. Durable mixed-surface tyres and everyday accessories give you the versatility to take the long route home or inject adventure into your daily ride routine.
Product code: BHYBALENX1X11

...And Many Ways To Pay...

  • "a great electric bike and the best hybrid on our list."
    techradar

Description

With its classic British styling, powerful hub motor and robust components, the Hybrid AL e is built for riders who want to elevate their daily commutes and recreational rides to a whole new level. Durable mixed-surface tyres and everyday accessories give you the versatility to take the long route home or inject adventure into your daily ride routine.

Groupset

SRAM NX 1 is engineered for simplicity and durability, focusing less on maintenance and more on riding. A single-gear shifter gives you access to all the gears you need to go uphill or downhill. Hydraulic disc brakes instil confidence, providing ample stopping power regardless of the terrain or weather conditions.

Groupset

Wheelset

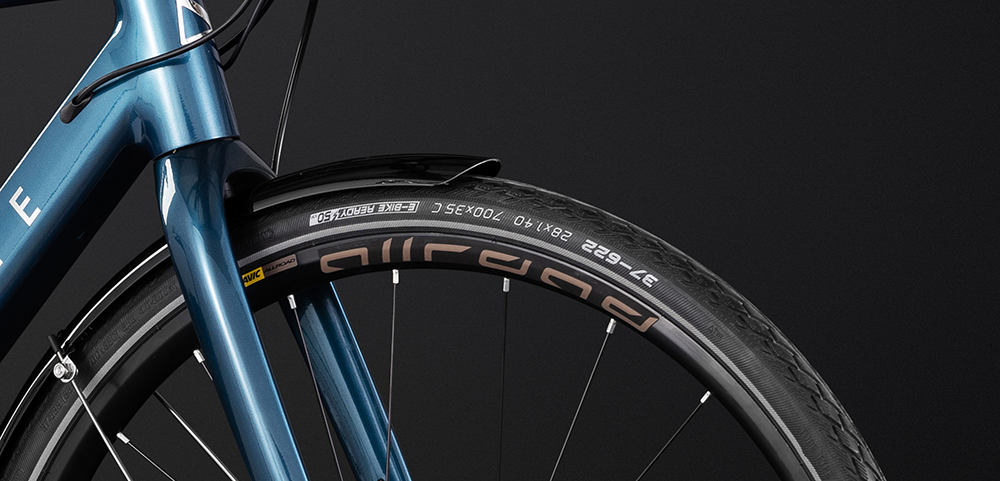

Built to cope with the rigours of the city streets, Mavic’s lightweight and robust Allroad wheels with integrated motor are the perfect choice for urban exploration. Adding an extra layer of comfort and protection is the ultra-reliable, puncture-proof Schwalbe Marathon tyre in a shock-absorbing 35mm width. A reflective strip on the tyre sidewalls improve visibility in low light condiitons.

Wheelset

Handlebars

Flat handlebars provide a comfortably upright and relaxed riding position, offering you a great view of your surroundings and the road ahead. Fitted with urban gel grips for improved hand security and comfort and neatly matched with a LEVEL alloy handlebar stem. Switch between assistance modes and check remaining battery charge as you ride using the handlebar mounted iWoc One control unit.

Handlebars

Saddle

A lightweight LEVEL alloy seat post paired with a Selle Royal Vivo Trekking saddle brings outstanding comfort and support to your urban explorations.

Saddle

Size

To assist you in selecting the correct size, simply find your height on the graphic. It illustrates our recommendations so you can be confident that the size you order will be correct. If you find that your height is between sizes, we recommend you opt for the smaller size.

Size

Geometry

SizeSMMDLGXL
Rider Height5'0" - 5'7" (153 - 170cm)5'7" - 5'10" (170 - 178cm)5'10" - 6'1" (178 - 185cm)6'1" - 6'4" (185 - 193cm)
A - Seat Angle73°72.5°72.5°72°
B - Top Tube (mm)552585600634
C- Head Angle71°71°71°71°
E - Head Tube (mm)150170190200
F - BB Drop69696969
G - Seat Tube (mm)420490540590
RC - Chainstay (mm)436436436436
FC - Front Centre (mm)608637654682
Reach (mm)390405415430
Stack (mm)530571591630
WB - Wheelbase (mm)10311036.81041.81055

Frequently Asked Questions

The conveniently situated iWoc trio handlebar-mounted control unit allows you to switch between assistance levels and check the remaining battery charge without removing your hands from the bars or eyes from the road ahead.

Simply press the handlebar-mounted control button once to check the remaining battery capacity, which is displayed using a simple traffic light system: White = 75% capacity or more remaining, Green = 50-75%, Amber = 25-50%, Red = 15-25%, Slow Red Flash = 10-15%, and Rapid Red Flash = 10% or less remaining. You can also keep track of the remaining battery life using the MAHLE SmartBike Systems companion app.

All our electric bikes are pedal-assisted models (pedelecs) and always require rider input.

There’s no need to worry; being a pedal-assisted model means you are always in full control. When a power assist level is selected the motor simply provides a little extra boost whilst you pedal and does not take over.

No. Pedal-assisted electric bikes don't require holding a valid driver’s licence, paying any road tax or taking out insurance.

To charge the battery, you simply plug the bike into a household socket using the supplied charger and cable. (The optional range extender can also charge the main battery whilst you are on the move).

The electric components used on our e-bikes are IP54 rated. They can be used in inclement weather conditions and are protected against splashing, but not against full immersion or when subjected to pressurised water from a hose pipe or jet wash. When transporting the bike outside of a vehicle, a waterproof cover should be utilised to protect the electronic components from water damage during such transportation. As with any bike, we recommend thoroughly cleaning and drying the bike after any wet weather ride to ensure the peak performance of your bike.

You can test-ride any of our e-bikes and receive expert buying advice at our flagship Clitheroe showroom. Please contact the showroom in advance so that we can ensure that any suitable bikes you wish to test are available for your visit. Alternatively, you can hire the e-bike from E-Venture Bikes in Keswick; the rental cost will be deducted from your purchase if you decide to buy one of our e-bikes.

All e-bikes can be purchased through all major Cycle to Work scheme providers. The government has even abolished the £1000 limit, making obtaining an e-bike on Cycle to Work more beneficial than ever.

The MAHLE X35 power assist system provides assistance up to 15mph, at which point (by law, as with all e-bikes in the UK) the assistance cuts out. If you drop back below 15mph, the system will re-engage until you turn it off.

The battery range of the Hybrid AL e depends on several factors, including rider weight, route profile and temperature. A rider of 90kg on a varied route, including climbs, descents and flats, can expect an approximate range of up to 60 miles. An optional range extender is also available for all our e-bikes, effectively doubling the bike's available range.

The Hybrid AL e includes integrated mounts for a rear pannier rack.

There's clearance for 700 x 45 mm or 650b x 48 mm tyres without mudguards or 40mm with mudguards fitted.

The MAHLE SmartBike system requires a bolt-on fitting rear wheel; the front is an M12 x 120 mm x 1.5 mm thru axle.

Due to the many different types of pedals available and rider preference, we don't include pedals with the bike. Our most popular pedals are available to order when you configure your bike build.

Builds start from just 12.5 kg, including the motor system at 3.5 kg (without accessories fitted).

The battery can be accessed through the bottom bracket. To facilitate this removal, the press-fit bottom bracket must be removed first. We recommend that a professional mechanic carry this work out.

The battery can reach up to 500 charging cycles while retaining up to 90% of its capacity, as long as its care and maintenance are adequate. Please refer to our battery care blog for our top tips and recommendations to maximise battery life. Use only the original MAHLE charger supplied with your bike.

Simply disconnect the cable to the rear wheel motor by unclipping the connector on the chainstay. Then, use an 8mm Allen key to loosen the nuts on the rear axle, and reverse the process when the puncture has been repaired.

The frame is warranted against manufacturing defects for three years. All other parts are covered by the manufacturer's standard warranty. The MAHLE system carries a two-year warranty.
