Hybrid AL e Step Through - Fully Loaded Edition
SRAM NX 11-Speed

  1. £1,799
A hybrid electric step through bike with the range and comfort to open a whole new world of possibilities. The Hybrid AL e Step Through gives you the power to explore and make you fall in love with cycling again.
Product code: BHYBALESTNX1X11

...And Many Ways To Pay...

  • “You would overlook the secret power from the outside if you weren’t looking. You certainly notice it once you’re riding.”
    Cycling Electric
  • “A very well-rounded entry into the assisted urban bike market.”
    eBike Tips

Description

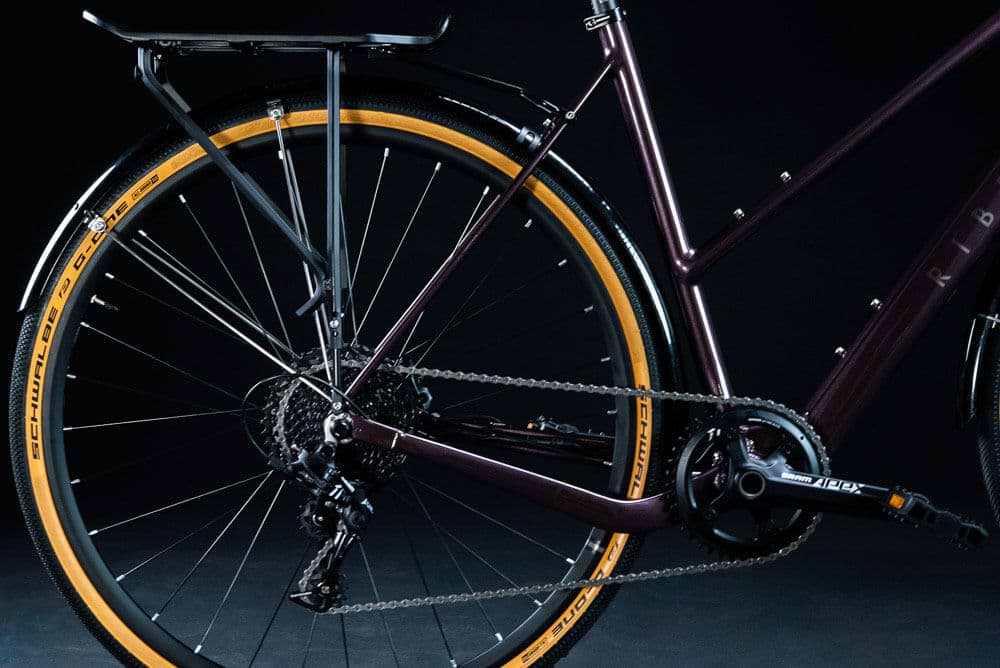

Versatile, stylish, and sporty, the Hybrid AL e Step Through is designed to make your everyday life easier with the added confidence of three smooth levels of electric power assistance to amplify your pedalling efforts. With a comfortably upright riding position, reassuringly stable handling and easy step-on/step-off design, it’s the ideal choice for everyday rides on varied terrain. Simple and reliable gears, the assured braking of hydraulic disc brakes, and high-quality accessories, including a pannier rack, mudguards, and a bell, all contribute to maximising your ride comfort, safety and enjoyment.

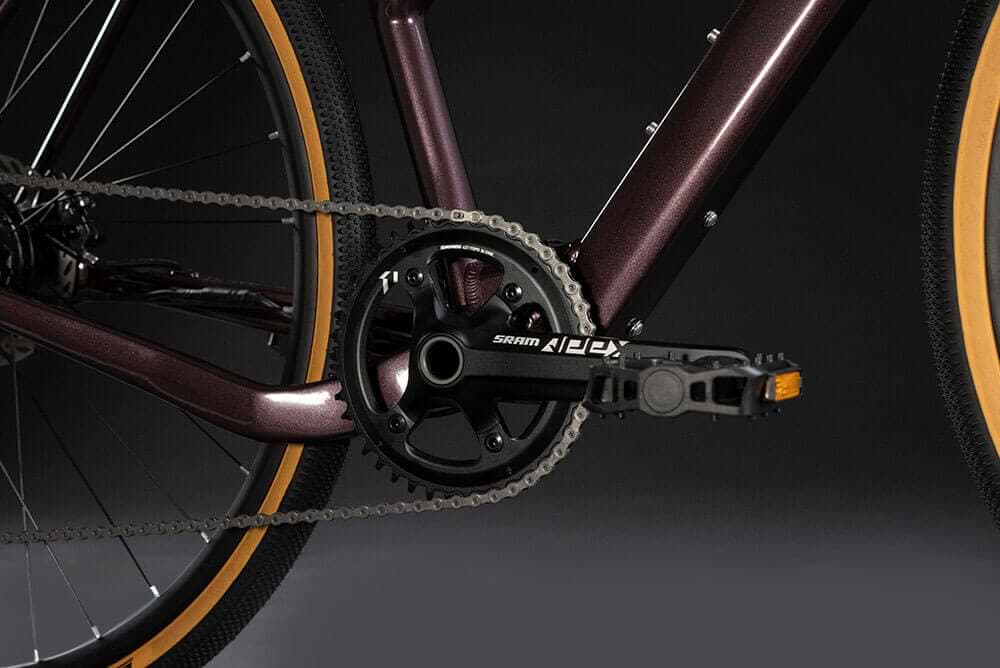

Groupset

SRAM NX 1 is engineered for simplicity and durability, with a single gear shifter giving you access to all the gears that you need when riding uphill or down. Less emphasis on maintenance means more time spent maximising your ride enjoyment, whilst the unrivalled stopping power of hydraulic disc brakes deliver quiet confidence with every ride.

Groupset

Electric Motor System

The extra pedal assistance of an electric motor enables you to effortlessly navigate city streets, take a detour off-road, and conquer any climb. With up to 60 miles of range from a single charge, the ride feels as natural as a traditional bike and makes any journey possible.

Electric Motor System

Wheelset

Built to cope with the rigours of the city streets, Mavic’s lightweight and robust Allroad wheels with integrated motor are the perfect choice for tarmac or trail exploration. Adding an extra layer of comfort and protection is the ultra-reliable, puncture-proof Schwalbe Marathon tyre in a shock-absorbing 35mm width. A reflective strip on each side of the tyre improves low-light visibility for added safety and security.

Wheelset

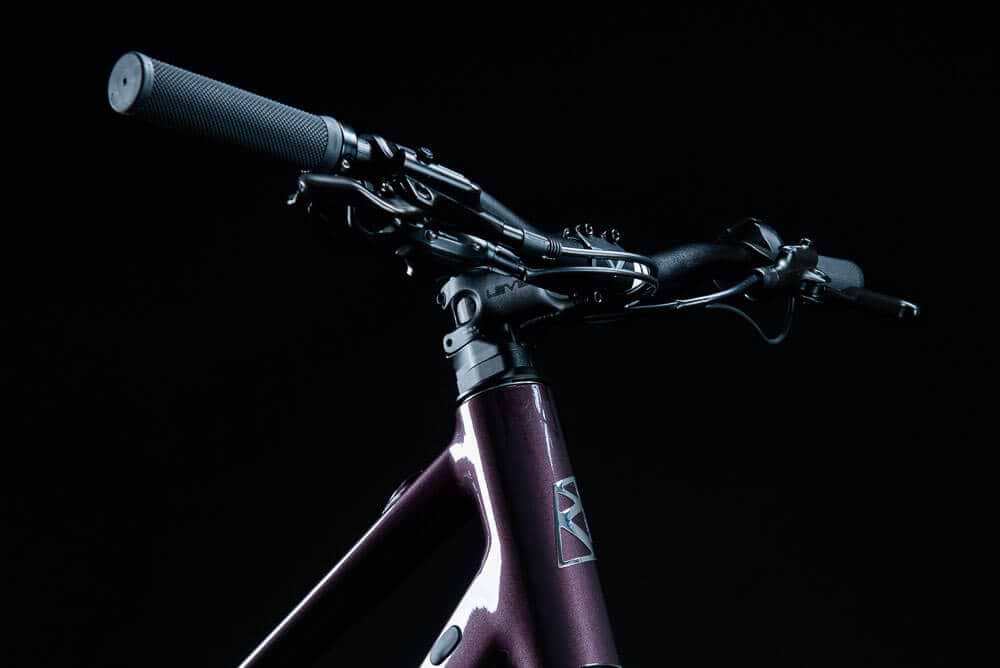

Handlebars

Flat handlebars provide a comfortably upright and relaxed riding position, offering you a great view of your surroundings and the road ahead. Fitted with urban gel grips for improved hand security and comfort and neatly matched with a LEVEL alloy handlebar stem.

Handlebars

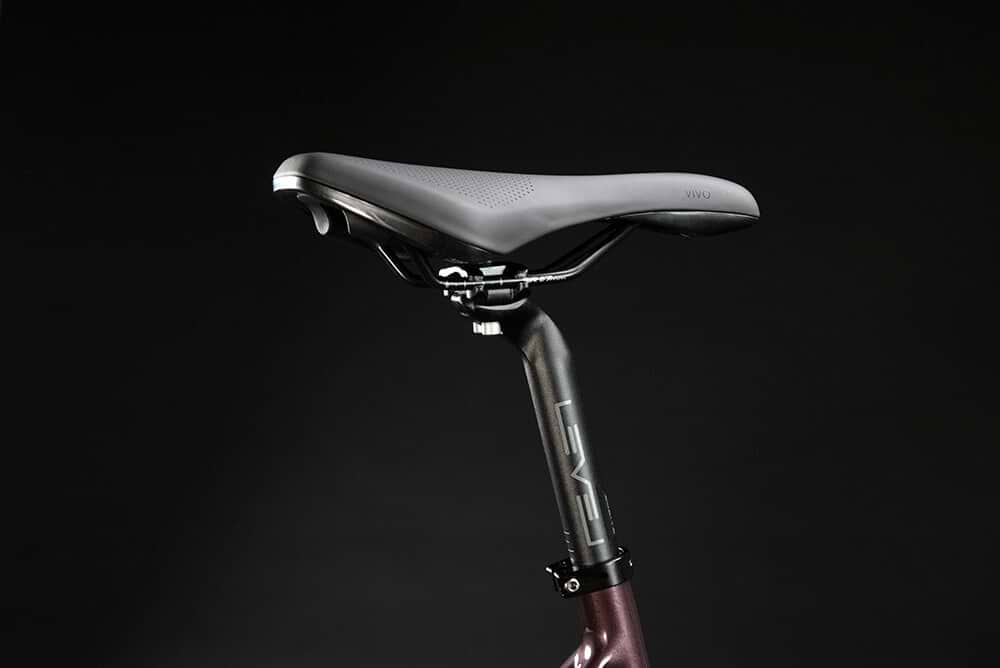

Saddle

A lightweight LEVEL alloy seat post paired with a Vivo Trekking saddle brings outstanding comfort and support to your urban explorations.

Saddle

Size

To assist you in selecting the correct size, simply find your height on the graphic. It illustrates our recommendations so you can be confident that the size you order will be correct. If you find that your height is between sizes, we recommend you opt for the smaller size.

Size

Geometry

SizeSMMD
Rider Height5'1" - 5'6" (155 - 168cm)5'6" - 5'11" (168 - 180cm)
D - Seat Angle74.5°74.5°
B - Top Tube (mm)520550
E- Head Angle70.5°70.5°
C - Head Tube (mm)140170
F - BB Drop6969
A - Seat Tube (mm)460520
G - Chainstay (mm)435435
Reach (mm)365387
Stack (mm)557586
WB - Wheelbase (mm)10211053

Frequently Asked Questions

The conveniently situated handlebar-mounted control unit allows you to switch between assistance levels and check the remaining battery charge without removing your hands from the bars.

Press the handlebar-mounted control button once to check the remaining battery capacity, which is displayed using a simple traffic light system: White = 75% capacity or more remaining, Green = 50-75%, Amber = 25-50%, Red = 15-25%, Slow Red Flash = 10-15%, and Rapid Red Flash = 10% or less remaining. You can also keep track of the remaining battery life using the MAHLE SmartBike Systems companion app.

All our e-bikes are pedal-assisted models and always require rider input.

There’s no need to worry; being a pedal-assisted model means you are always in full control. When a power assist level is selected the motor simply provides a little extra boost whilst you pedal and does not take over.

No. Pedal-assisted electric bikes do not require you hold a valid driver’s licence, pay road tax, or take out insurance.

You simply plug the bike into a household power socket and charge the battery using the supplied charger and cable. (The optional range extender can also charge the main battery while you are on the move.)

The electric components used on our e-bikes are IP54 rated. They can be used in inclement weather conditions and are protected against splashing, but not against full immersion or when subjected to pressurised water from a hose pipe or jet wash. When transporting the bike outside of a vehicle, a waterproof cover should be utilised to protect the electronic components from water damage during such transportation. As with any bike, we recommend thoroughly cleaning and drying the bike after any wet weather ride to ensure the peak performance of your bike.

You can test-ride any of our e-bikes and receive expert buying advice at our flagship Clitheroe showroom. Please contact the showroom in advance so that we can ensure that any suitable bikes you wish to test are available for your visit. Alternatively, you can hire the e-bike from E-Venture Bikes in Keswick; the rental cost will be deducted from your purchase if you decide to buy one of our e-bikes.

All e-bikes can be purchased through all major Cycle to Work scheme providers. The government has even abolished the £1000 limit, making obtaining an e-bike on Cycle to Work more beneficial than ever.

The MAHLE X35 power assist system provides assistance up to 15mph, at which point (by law, as with all e-bikes in the UK) the assistance cuts out. If you drop back below 15mph, the system will re-engage until you turn it off.

The battery range of the Hybrid AL e depends on several factors, including rider weight, route profile and temperature. A rider of 90kg on a varied route, including climbs, descents and flats, can expect an approximate range of up to 60 miles. An optional range extender is also available for all our e-bikes, effectively doubling the bike's available range.

The Hybrid AL e includes integrated mounts for a rear pannier rack.

There is ample clearance for 650b x 48mm or 700c x 45mm tyres without mudguards or 40mm with guards fitted.

The MAHLE SmartBike system requires a bolt-on fitting rear wheel; the front is a 100/120/M12*P1.5 bolt-thru axle.

Yes, fitting a basket to the handlebars is as easy as ...Well, riding a bike!

The battery is accessible by removing the bottom bracket. The motor can easily be replaced too.

The battery can reach up to 500 charging cycles while retaining up to 90% of its capacity, as long as its care and maintenance are adequate. Please refer to our battery care blog for our top tips and recommendations to maximise battery life. Use only the original MAHLE charger supplied with your bike.

Simply disconnect the cable to the rear wheel motor by unclipping the connector on the chainstay. Then, use an 8mm Allen key to loosen the nuts on the rear axle, and reverse the process when the puncture has been repaired.

The frame is warranted against manufacturing defects for a period of 3-years. All other parts are covered by the manufacturer's standard warranty. The MAHLE system carries a 2-year warranty.

A step-through bike’s design includes a low-top tube (sometimes referred to as a crossbar), which allows you to step onto the bike and dismount without having to swing your leg over the saddle. This makes it especially suited to riding whilst dressed in business attire, a skirt or for those with restricted flexibility. Plus, this design also helps you to mount when luggage is fitted, without the need to balance the bike as you swing your leg over luggage, seat post, and saddle.

The Hybrid AL e Step Through is available in 2 sizes; Extra Small/Small to fit rider heights 5’1” to 5’6” (155-167cm) and Medium/Large to fit 5’6” to 5’11” (168-180cm).
